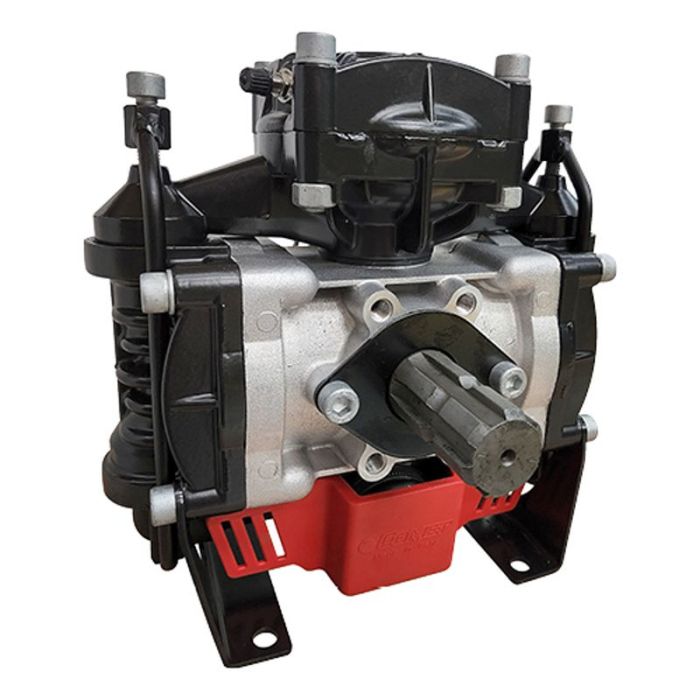

Silvan Diaphragm Pump BP60/20 (CBP06020)
In stock
SKU
45504
$1,897.01
All Silvan diaphragm pumps are built for 540 RPM operation, are Self-priming and designed so no special tools are required for service. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8? six splined shaft. Some models are available with keyed shaft.
Silvan Product Code: CBP06020
PUMP SIZE (L/MIN):: 58
MAX PRESSURE: 20 Bar/290 psi
PRODUCT WEIGHT (KG): 10
HEIGHT / WIDTH / LENGTH (MM): 280 / 276 / 258
DIAPHRAGMS :2
HP REQUIRED AT MAX PRESSURE : 3.3
OUTPUT : Output @ 540 RPM: 58 L/min
Silvan Product Code: CBP06020
PUMP SIZE (L/MIN):: 58
MAX PRESSURE: 20 Bar/290 psi
PRODUCT WEIGHT (KG): 10
HEIGHT / WIDTH / LENGTH (MM): 280 / 276 / 258
DIAPHRAGMS :2
HP REQUIRED AT MAX PRESSURE : 3.3
OUTPUT : Output @ 540 RPM: 58 L/min
